The new XCN-1060 display is compatible with the proven steering types:

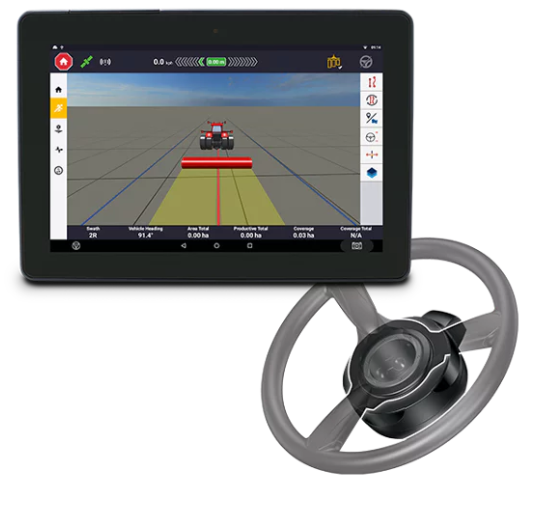

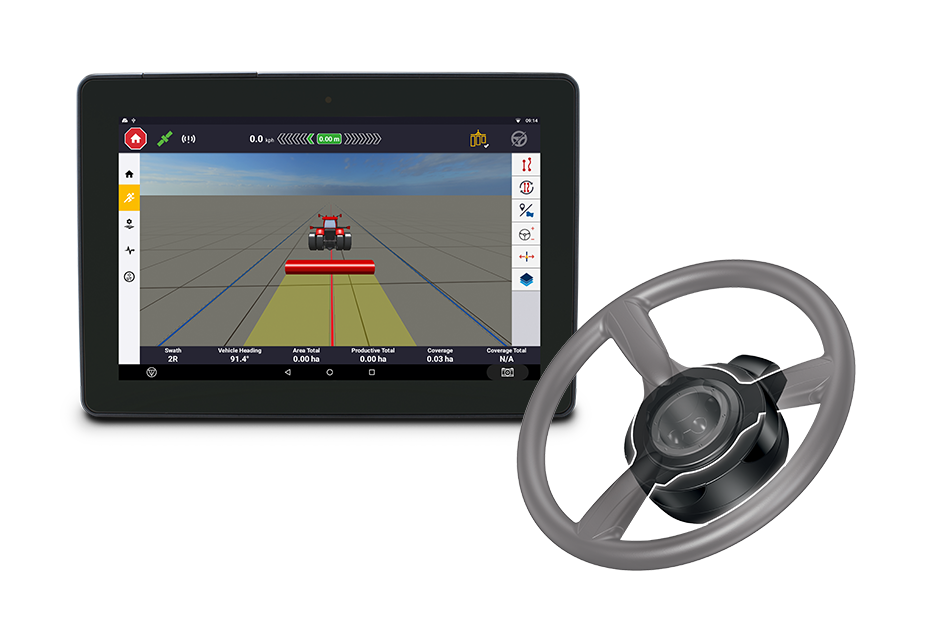

XCN-1060 with EZ-Pilot PRO
XCN-1060 with EZ-Pilot PRO guidance system offers high accuracy guidance across many vehicle types and brands at an affordable price.

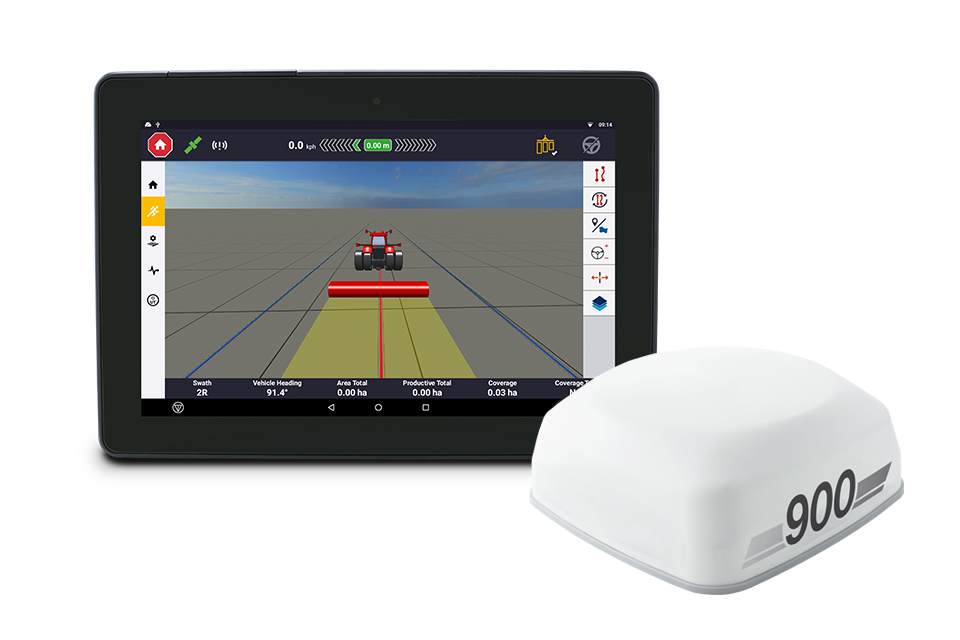

Combining EZ-Pilot Pro simplicity with the NAV-900 or NAV-500 guidance controller results in an easy to-install assisted steering option for your vehicle with up to 1.5 cm accuracy.

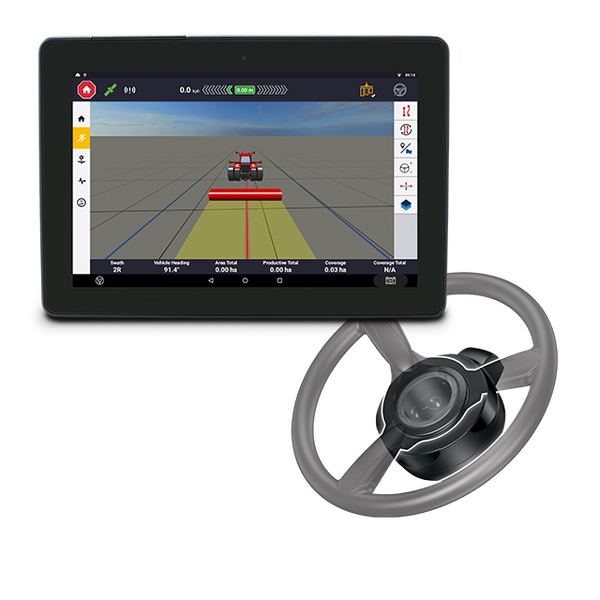

XCN-1060 with Autopilot Motor Drive
Autopilot Motor Drive is an electric, hands-free, automated steering system that delivers highly accurate, Autopilot-level steering with the ease of installation of the EZ-Pilot® system.
No matter your vehicle type or brand, the Autopilot Motor Drive system can be quickly transferred from one vehicle to another.

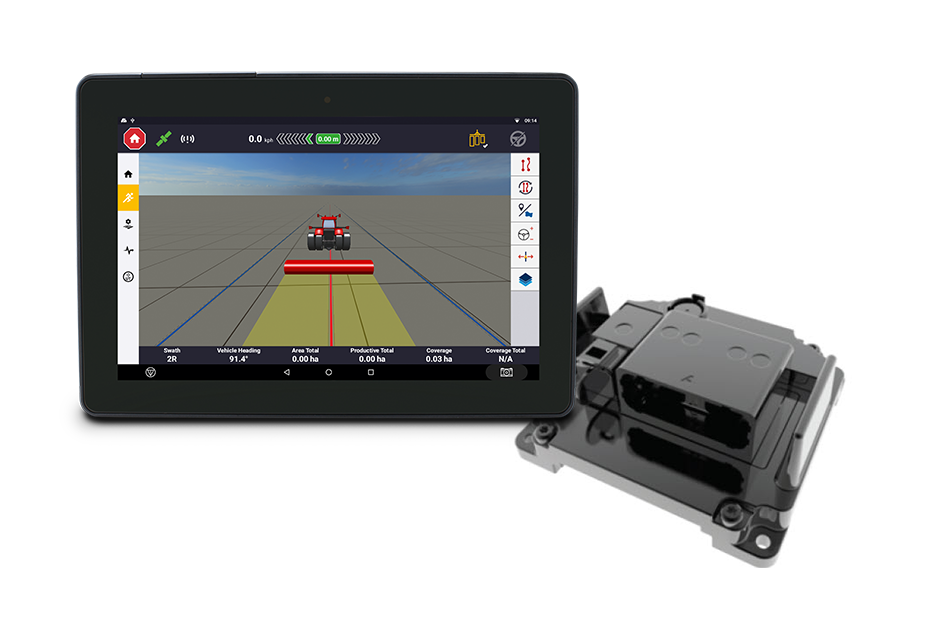

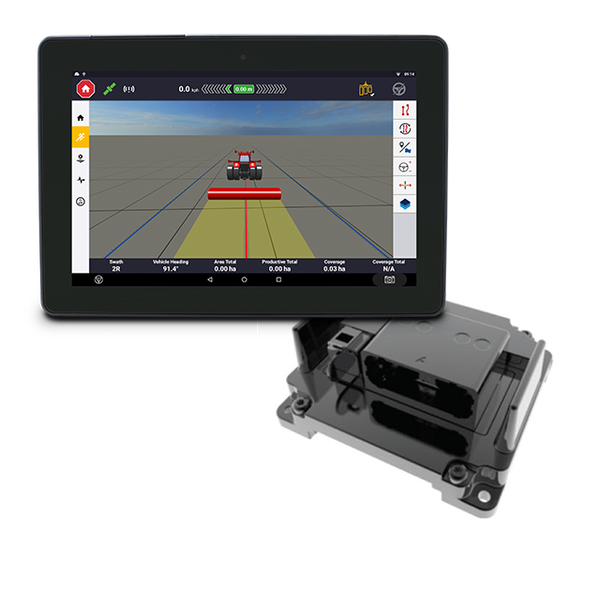

XCN-1060 with Autopilot
(with VDM-912)
Autopilot, directly integrated into your vehicle's hydraulics, automatically steers your vehicle on-line with maximum precision. When your vehicle gets offline,
Autopilot signals it to adjust its position to follow the correct path, no matter the field pattern or terrain type - so you can focus on the job ahead of you.
COMPARE AND CHOOSE YOUR FAVORITE AFS SOLUTIONS
CASE IH ADVANCED FARMING SYSTEMS (AFS™) offers precision farming solutions for your Case IH machines that can also be retrofitted on other machine brands. Below is a top selection of our most popular and well-proven solutions for farmers with mixed fleets.
| EZ Pilot TM Pro | AutoPilot ™ Motor Drive | AutoPilotTM _ | ||
|---|---|---|---|---|
| Guidance type | Assisted steering | Hydraulic steering | ||
| Compatible machines | Compatible with platform kits for more than 200 machines | Machine equipped with CAN and non CAN based factory integrated hydraulic steering valves | ||
| Guidance controller | NAV-500 or NAV-900 | Ag25 & NAV-900 | Ag25 & NAV-900 | |
| Compatible displays | XCN-1050 | XCN-750 | ||
| low speed | 1.61km/h | 0.35km/h | 0.35 km/h (0.07 km/h with additional hardware | |
| Angle (approach) | 45° | 90° | 90° | |
| reverse operation | Yes (15 sec.) | yes | yes | |
| Stay engaged when stopped | Yes (15 sec.) | yes | yes | |
| Next Swath (end of row turn capability) | No | yes | yes | |
| Field operations | Spraying, spreading tillage, mowing, harvesting, steering. | Spraying, spreading, tillage, mowing, harvesting, seeding, hoeing, mechanical weeding, bed preparation and planting, row crop, vine plantation, implement steering. | ||
